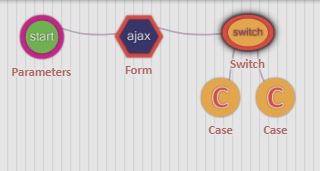

A switch statement is a type of selection control mechanism used to allow the value of a variable or expression to change the control flow of program execution via a multi way branch. In this work flow we have to select switch node then it showing node settings and user can select multiple cases.

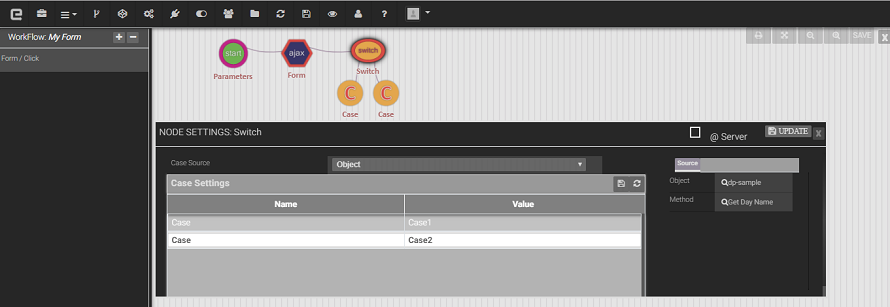

Node settings: Switch

In this node settings select case source.

Constant

It contains constant value of the parameter.

ERS Meth

It contains context and method. Context includes model names as well as method contains related method.

Formula

It contains addition, subtraction, multiplication, division, percentage symbols and parameters. User selects parameters and click on arithmetic operators.

Loop

It contains context and method. Context includes model names as well as method contains related method.

Model

It contains context and method. Context includes model names and select related method.

Object

It contains instance and method. Instance includes name of the UI component and select related method.

Result Set

It contains instance and get type. Instance includes name of the post, get type contain data and field.



Case Settings

Name

Name of the cases.

Value

Value of the cases. User giving the value based on requirement.

Instance

Name of the UI component. User can select component name based on requirement.

Method

It is showing some methods. User can select one method based on requirement.
